Case Study: Delivering a Reliable and Redundant Power System for High-Stakes Event Production
Executive Summary
In the fast-paced world of live event production, ensuring uninterrupted power is critical to success. This case study examines a project where Resilient Energy Solutions’ team delivered a robust 1600KVA power system with full redundancy for a major show. Facing tight timelines, spatial constraints, and operational hurdles, we provided a turnkey solution that included generators, transformers, distribution panels, and on-site support. The result was a seamless event execution, demonstrating our expertise in overcoming real-time challenges to maintain 100% operational reliability.
Project Scope
The client required a comprehensive power solution to support a large-scale production event, emphasizing reliability, redundancy, and efficiency. Key deliverables included:
Power Capacity and Distribution: A total of 1600KVA power generation, with distribution infrastructure installed beneath the stage to minimize visibility and maximize accessibility.
Timeline Constraints: All setups had to align with the production schedule, ensuring minimal disruption. Upon completion, a full load test was conducted with all generators operating at 100% capacity to verify the system's ability to handle the show's maximum load.
Redundancy and Support: The system needed 100% backup redundancy to prevent any downtime. On-site technicians were required throughout the event duration for monitoring and maintenance.
Post-Event Requirements: Following the event's "strike" (teardown), all equipment had to be removed from the site within 48 hours to facilitate quick venue turnover.
This scope demanded precise planning, as any power failure could jeopardize the entire production.
Challenges
Event sites often present unforeseen obstacles that pre-planning tools like Google Maps and site visits can only partially address. The true test came during on-site deployment:
Placement and Layout: Equipment positioning was a major hurdle. Generators had to be fitted into a confined area to shorten power runs and reduce efficiency losses. Transformers were strategically placed under the stage for concealment while remaining easily accessible for maintenance.
Cable Management and Voltage Issues: Extensive cable runs across the venue led to voltage drop, requiring meticulous adjustments to ensure consistent power distribution. This involved real-time monitoring and tweaks to maintain optimal voltage levels throughout the show.
Fueling Logistics: The tight placement of generators complicated refueling operations. Standard methods were impractical, necessitating the use of extended fuel hose to safely and efficiently replenish the units without interrupting operations.
These challenges highlighted the need for adaptive problem-solving in dynamic environments, were theoretical plans meet practical realities.
Solution
To meet the project's demands, Resilient Energy Solutions implemented a full turnkey power supply and distribution system, tailored for redundancy and performance. The solution included:

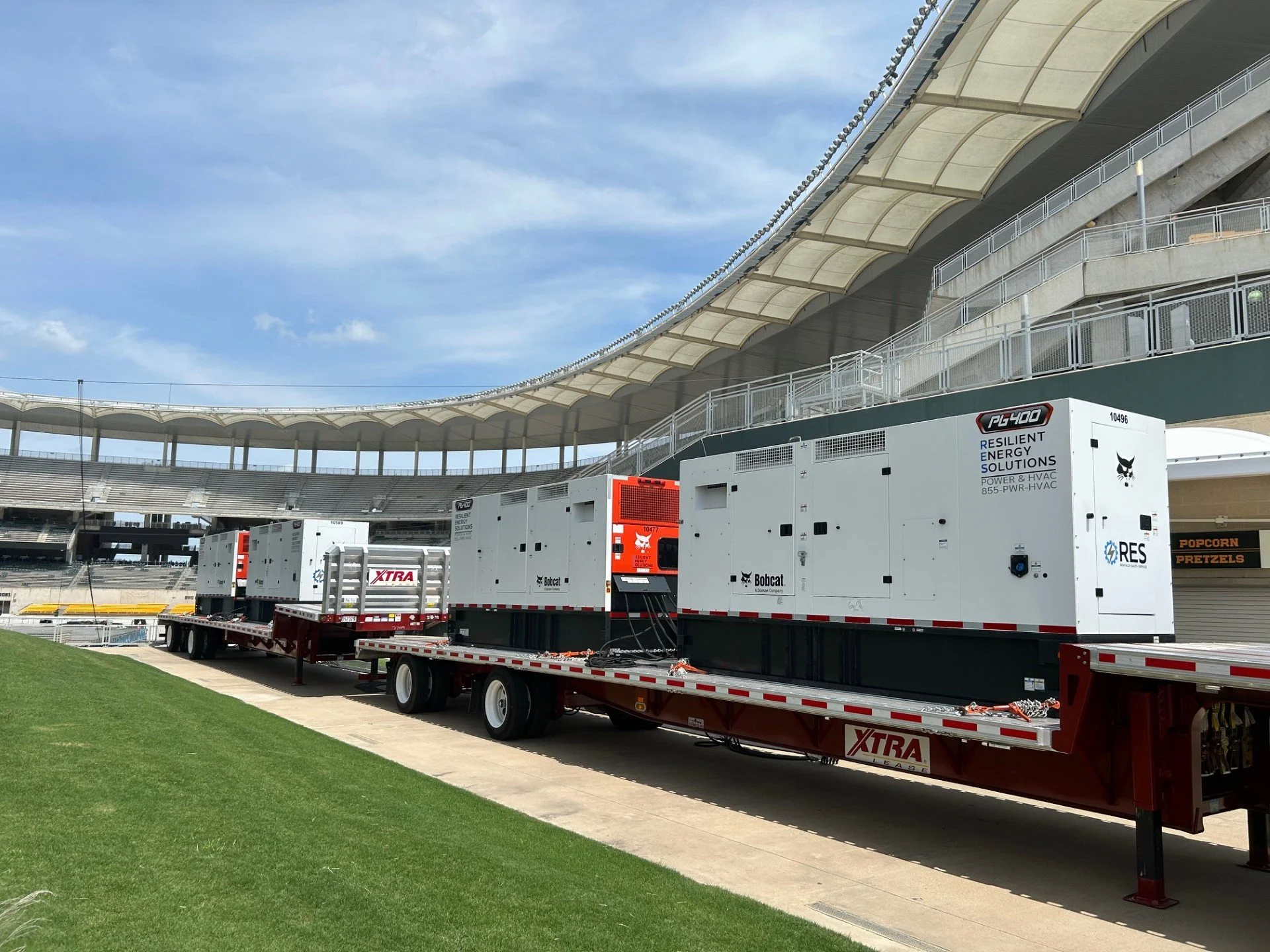

Generation Equipment: Four 400KVA generators, providing the core 1600KVA capacity with built-in redundancy.
Transformation and Distribution: Three 300KVA transformers and four 150KVA transformers to step down and distribute power efficiently. This was complemented by two 800A I-line panels and a 3000A common bus for seamless integration.
Supporting Infrastructure: All necessary cabling to connect and route power, minimizing losses and ensuring safe operation.
On-Site Support Package: A dedicated team of technicians handled all aspects of operation, including fueling, monitoring, and immediate troubleshooting. This ensured 24/7 readiness and quick response to any issues.
The setup was designed for scalability and fault tolerance, allowing the system to operate at full load during testing and throughout the event. By leveraging our expertise in modular power systems, Resilient Energy Solutions created a layout that optimized space while prioritizing safety and reliability.
Results and Outcomes
The event proceeded flawlessly from the audience's perspective, with no power-related interruptions. Behind the scenes, our team effectively managed several issues:
Voltage Stability: We addressed voltage drops from long cable runs through proactive adjustments, maintaining consistent power delivery.
Fueling Oversight: One generator was inadvertently missed during a refueling cycle, but our on-site protocols allowed for rapid correction without impacting operations.
General Preparedness: Minor, expected challenges arose, such as equipment tweaks and coordination with third-party vendors. Our team's readiness enabled us to resolve not only our system's issues but also those from external sources.
Overall, the project reinforced our capability to handle high-pressure scenarios. The 100% load test confirmed the system's robustness, and post-event teardown was completed within the 48-hour window. This success enhanced client satisfaction and positioned us as a trusted partner for future productions, proving that thorough preparation and adaptive execution can turn potential pitfalls into triumphs.
Lessons Learned
This case underscores the importance of flexibility in event power management. While pre-site assessments are valuable, on-the-ground adjustments are often key. Investing in redundant systems and skilled on-site personnel mitigates risks, ensuring even complex setups deliver reliable results. For similar projects, we recommend early collaboration on site layouts and contingency planning for logistics like fueling in constrained spaces.
