BATTERY STORAGE & HYBRIDS
Smarter, Cleaner Power Solutions
Reduce fuel use and emissions with hybrid and battery storage systems.
Our hybrid systems integrate with generators to deliver quiet, efficient energy with reduced fuel costs and lower environmental impact. Ideal for low-load or remote sites needing sustainable backup power.
Overview
The Atlas Copco ZBP 40-60 is a compact, modular, single-phase energy storage system designed for rental applications, live events, telecom, utilities, residential-scale backup, and small commercial operations. With 60 kWh total battery capacity (53.6 kWh usable) and 32 kW of rated output, this system provides clean, silent, and fuel-free power wherever traditional generators may be restricted.
Powered by advanced Lithium Iron Phosphate (LiFePO₄) battery chemistry, the ZBP 40-60 delivers excellent cycle life, strong thermal stability, and reliable performance in demanding environments. It can operate in island mode, pair with diesel generators for hybrid efficiency, or optionally connect to solar for increased sustainability. Its single-phase output makes it ideal for sites requiring standard 240/120V power without three-phase distribution.
Key Features
32 kW / 32 kVA rated single-phase power output
60 kWh total energy with 53.6 kWh usable storage
Adjustable 240/120V single-phase output (190–256V range)
Ultra-safe Lithium Iron Phosphate (LiFePO₄) battery technology
Fast recharge time: 2.6 hours at full rated power
Quiet operation: <70 dB(A) at 7 meters
Wide operating temperature: 14°F to 122°F
ECO Energy Controller with intelligent load management and programmable quiet times
Optional cold-weather kit for extreme climates
Remote monitoring & GPS included
Ideal for portable, quiet, and emission-free temporary power
Technical Specifications
Electrical Performance
Rated Power: 32 kW / 32 kVA
Rated Voltage: 240/120V (single-phase, adjustable)
Battery Voltage: 48 VDC
Rated Discharge Current: 167 A
Recharge Time: 2.6 hours (100% at rated power)
Sound Level: <70 dB(A)
Battery System
Chemistry: Lithium Iron Phosphate (LiFePO₄)
Quantity: 12 modules
Rated Capacity: 100 Ah per module
Depth of Discharge (DoD): 95%
Total Energy Throughput: Up to 250 MWh
Expected Cycle Life: Long-cycle performance at high DoD
Compliances: IEC62619, IEC63056, CE, UN38.3, UL1973, UL9540A, UKCA
Inverter System
Units: 4 inverter modules
Peak Efficiency: 96%
Input Voltage Range: 38–66 VDC
Apparent Power (per inverter): 10 kVA
Active Power (per inverter): 8 kW
Passthrough Current: 200 A
Hybrid-ready with generator support
Dimensions & Weight
Dimensions (L × W × H): 57" × 49" × 74"
Weight: 3,175 lbs
Applications
Event power and entertainment
Residential or commercial single-phase backup power
Telecom and communication infrastructure
Hybrid generator integration to reduce fuel consumption
Urban construction sites needing low-noise and low-emission solutions
Portable power for small industrial tools and equipment
Renewable microgrids and solar-storage hybrids
Why Choose the ZBP 40-60?
Single-phase output ideal for homes, trailers, job trailers, and light commercial loads
Quiet, emission-free alternative to portable generators
Fast charging with excellent cycle life
Highly portable footprint for metro and event environments
Integrated smart controls for efficient and automated operation
Safer and more stable battery chemistry than standard lithium-ion
Request More Information
Interested in this unit? Download the Spec Sheet or contact our team below to learn more about availability, pricing, and customization options for your project.
Manufacturer: Atlas Copco
Overview

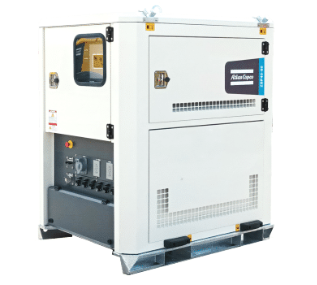

The Atlas Copco ZBP 30-60 is a compact, modular energy storage system designed for urban jobsites, events, telecom, and hybrid generator applications. With 60 kWh of total energy (53.6 kWh usable) and 30 kW of rated output power, this unit delivers clean, reliable, and quiet power in environments where emissions, noise, or fuel consumption must be reduced.
Powered by advanced Lithium Iron Phosphate (LiFePO₄) batteries, the ZBP 30-60 can operate in island mode, integrate with diesel generators for hybrid efficiency, or optionally pair with solar for sustainable operation. Its small footprint, fast charging, and broad environmental tolerance make it a versatile solution for projects requiring portable, emission-conscious energy.
Key Features
30 kW / 30 kVA rated power output
60 kWh total energy with 53.6 kWh usable storage capacity
Operates in island mode, hybrid generator mode, or with optional solar integration
Ultra-safe LiFePO₄ chemistry with long cycle life and excellent thermal stability
Wide operating temperature: –4°F to 122°F (–20°C to 50°C)
Quiet operation: <70 dB(A) at 7 meters
ECO Energy Controller for intelligent load management and custom quiet-time rules
Adjustable 208/120V output (165–222V)
Compact footprint ideal for city work, events, and confined environments
Optional cold-weather kit for extreme conditions
GPS and remote monitoring enabled
Technical Specifications
Electrical Performance
Rated Power: 30 kW / 30 kVA
Net Usable Energy: 53.6 kWh
Voltage: 208/120V 3-phase (adjustable)
Battery Voltage: 48 VDC nominal
Discharge Current: 83 A
Recharge Time: 3.2 hours (100% rated power)
Peak Inverter Efficiency: 95%
Power Factor: –1 to +1
Battery System
Chemistry: Lithium Iron Phosphate (LiFePO₄)
Quantity: 12 modules
Rated Capacity: 100 Ah per module
DoD: 95%
Expected Cycle Life: High cycle durability at 90% DoD
Total Energy Throughput: Up to 250 MWh
Controller & Performance
ECO Energy Controller with:
State-of-charge control
Voltage/load monitoring
Custom start/stop rules
Quiet-time programming
Monthly test-run automation
Autonomy:
100% load: 1.9 hours
75% load: 2.6 hours
50% load: 3.8 hours
25% load: 7.7 hours
Passthrough Current: 200 A
Dimensions & Weight
Dimensions (L × W × H): 57" × 49" × 74"
Weight: 3,058 lbs
Applications
Events and entertainment power
Urban construction projects
Telecom sites & remote communications
Hybrid generator setups
Noise-restricted and emission-constrained locations
Temporary jobsite power where portability and low impact are essential
Solar-assisted microgrid or hybrid systems
Why Choose the ZBP 30-60?
Compact footprint ideal for tight, metropolitan environments
Safe, stable LiFePO₄ battery technology
Reduced fuel consumption when paired with generators
Significantly lower noise and zero local emissions
Rapid charging and long cycle life
Highly flexible operation modes (island, hybrid, solar-ready)
Request More Information
Interested in this unit? Download the Spec Sheet or contact our team below to learn more about availability, pricing, and customization options for your project.
Manufacturer: Atlas Copco
The ZBC 1000–1200 Battery Container is a high-capacity, utility-grade Battery Energy Storage System (BESS) engineered for large-scale temporary power, grid stabilization, and hybrid generator integration. Designed for 480V, 60Hz applications, this containerized solution delivers advanced energy storage with seamless integration into generator fleets or standalone microgrid systems.
Built for reliability, scalability, and reduced fuel consumption, the ZBC 1000–1200 provides peak shaving, load leveling, silent operation capability, and emission reduction for mission-critical environments.
Key Features
High-capacity lithium-ion battery storage system
480V | 60Hz output configuration
Designed for large industrial and utility applications
Hybrid-ready for integration with diesel generators
Intelligent energy management system
Plug-and-play connection capability
Containerized, weather-resistant enclosure
Remote monitoring and performance tracking
Reduced fuel consumption and emissions
Ideal for silent or low-load operation periods
Performance & Application Capabilities
The ZBC 1000–1200 is engineered to:
Support peak load demands without oversizing generators
Stabilize voltage and frequency fluctuations
Reduce generator runtime and fuel usage
Provide temporary grid support
Enable low-emission jobsite operations
Deliver silent power during off-peak hours
Improve overall fleet efficiency
Integrated Energy Management
The advanced onboard controller automatically:
Manages charge and discharge cycles
Optimizes generator runtime
Supports load sharing in multi-unit configurations
Enables peak shaving and load shifting
Allows remote diagnostics and asset monitoring
Container Design
Heavy-duty steel containerized design
Engineered for transport and rapid deployment
Outdoor-rated and weather-resistant
Secure access panels and service points
Designed for industrial environments
Ideal Applications
Utility grid support
Data centers
Oil & gas operations
Construction sites
Mining operations
Renewable integration (solar + storage)
Peak shaving programs
Event power and temporary power plants
Why Choose the ZBC 1000–1200?
Reduces fuel consumption and operational costs
Improves system redundancy and resiliency
Enables hybrid power solutions
Scalable for multi-megawatt deployments
Supports sustainability and emissions goals
Request More Information
Interested in this unit? Download the Spec Sheet or contact our team below to learn more about availability, pricing, and customization options for your project.
