Manufacturer: Atlas Copco

Overview

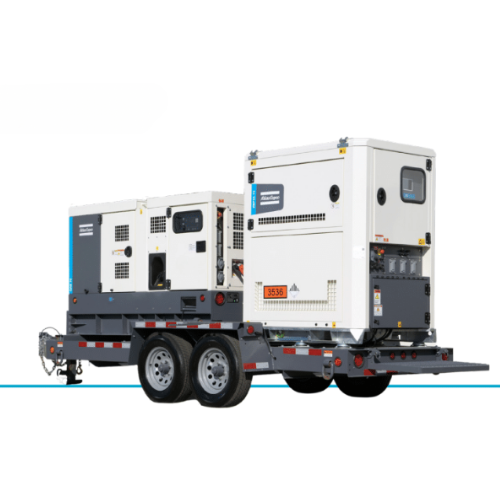

The Atlas Copco ECOPower Hybrid 60-60 is a smart hybrid generator system that combines a diesel generator with an integrated lithium battery energy storage system for more efficient, sustainable power. Designed for rental, events, telecom, and urban jobsites, this mobile hybrid unit delivers up to 60 kW / 60 kVA of hybrid power while dramatically reducing fuel consumption, noise, and maintenance.

With up to 9 hours of silent, battery-only operation per charge, in-built solar connectivity, and intelligent ECO controller logic, the ECOPower Hybrid 60-60 is ideal for customers who want diesel reliability with modern, low-emission performance.

Key Features

• 60 kW / 60 kVA maximum hybrid power

• Integrated battery energy storage system (ESS) plus diesel generator

• Up to 9 hours of silent power per charge (battery-only operation)

• ESS rated power: 24 kW / 24 kVA

• Prime diesel power: 36 kW / 36 kVA

• 57.6 kWh total battery capacity, 53.6 kWh usable

• Intelligent ECO Energy Controller for optimized start/stop and load management

• Built-in solar MPPT chargers for optional solar panel connection

• Significant fuel and maintenance savings vs. generator-only setups

• Designed for low-noise, low-emission, and fuel-efficient operation

• Ideal pairing of ZBP 30/60 + QAS 45 in a single hybrid package

Technical Specifications

Hybrid & Diesel Performance

• Maximum Hybrid Power: 60 kW / 60 kVA @ 25°C

• ESS Power: 24 kW / 24 kVA @ 25°C

• Prime Diesel Power: 36 kW / 36 kVA @ 40°C

• Max Current Output: 166 A

• Voltage: 208/120 V, 3-phase, 60 Hz

Fuel System

• Fuel Tank Capacity: 75 gal (284 L)

• Fuel Consumption (gal/h):

  • 25% load: 1.17

  • 50% load: 2.10

  • 75% load: 3.15

  • 100% load: 4.20

• Fuel Autonomy:

  • Up to 64 hours at 25% load

  • Up to 36 hours at 50% load

Battery Energy Storage System (ESS)

• Rated Energy Storage: 57.6 kWh

• Net Usable Energy: 53.6 kWh

• Battery Voltage: 48 VDC

• Depth of Discharge (DoD): 90%

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Operating Temperature: –4°F to 122°F

• Recharge Time: 1.8 hours

• Configuration: 16/12 modules, 100 Ah each, 4.8 kWh per module

• Cycle Life: ~6000 cycles at 90% DoD

• Battery Features: Automatic heating and smart cooling

Inverters & Controls

• Inverters: 6 units

• Peak Efficiency: 96%

• Input DC Range: 38–66 VDC

• Rated Apparent Power: 5 kVA per inverter

• Rated Active Power: 8 kW per inverter

• Peak Power: 130% (up to 30 minutes)

• Power Factor: –1 to +1

• Supports high motor start currents and short-term overloads

Controller & Monitoring

• ECO Energy Controller Optimizer

• 7" full-color display

• Fleetlink® telematics & GPS

• Programmable silent hours and quiet-time rules

• Automatic system balancing every 30 days

Solar Integration

• MPPT Chargers: 2 × MPPT 250/70

• Nominal PV Power: 4,000 W

• Integrated protections for PV reverse polarity, short circuit, and over-temperature

Dimensions & Weight

• Dimensions (L × W × H): 230" × 88" × 140"

• Weight (GTW / GVWR): 8,200 / 9,900 lbs

Applications

• Large events and festivals needing quiet overnight power

• Telecom and remote communications sites

• Construction sites looking to cut fuel costs and noise

• Urban or residential-adjacent projects with emission and sound restrictions

• Hybrid power setups where diesel runtime and maintenance must be reduced

Why Choose the ECOPower Hybrid 60-60?

• Combines the reliability of a diesel generator with the efficiency of battery storage

• Up to 9 hours of silent running per cycle for noise-sensitive environments

• Major fuel and maintenance savings across the life of the project

• Solar-ready for even greater sustainability and cost reduction

• Smart ECO control and telematics for optimized performance and remote visibility

Request More Information

Interested in this unit? Download the Spec Sheet or contact our team below to learn more about availability, pricing, and customization options for your project.
