PG1140WCU-2B-T4F – 1140 kVA Mobile Generator

Manufacturer: Bobcat
Category: Power Generation
Model: PG1140WCU-2B-T4F
Emissions: EPA Tier 4 Final

Overview

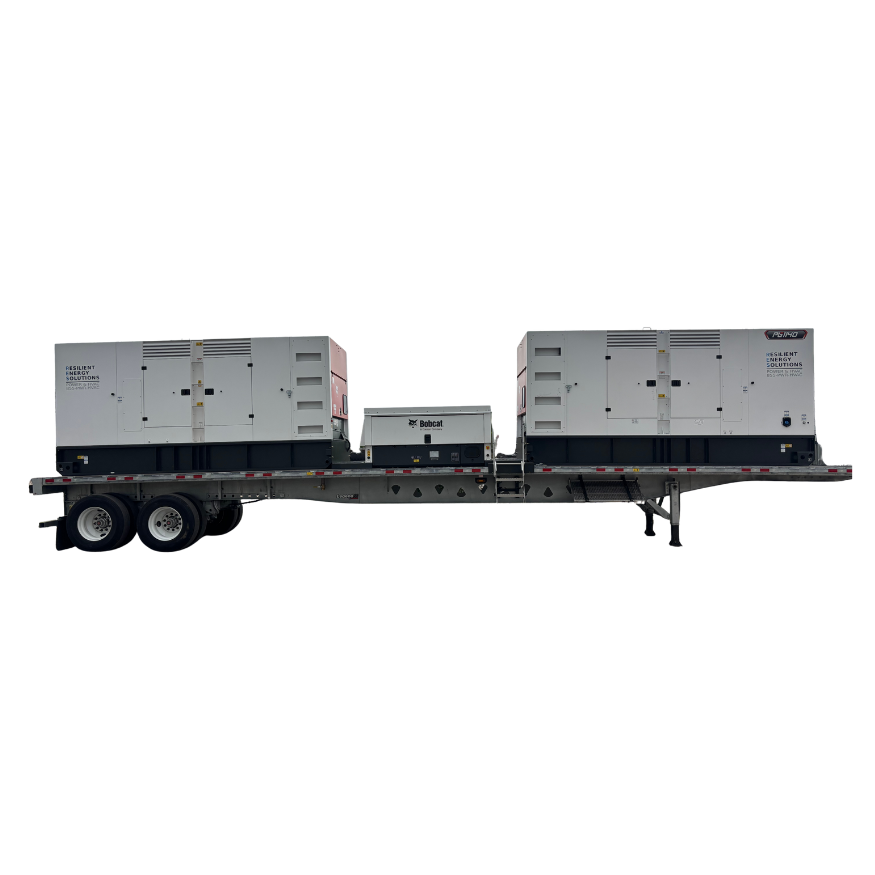

The Bobcat PG1140WCU-2B-T4F is a heavy-duty mobile generator system engineered for large-scale prime power applications where reliability, flexibility, and extended runtime are critical. Delivering up to 1140 kVA / 912 kW of prime power, the system combines two Cummins X15 Tier 4 Final engines, dual Leroy Somer alternators, integrated switchgear, and a 48-foot galvanized flatbed trailer into a rental-ready package.

Designed specifically for rental, construction, special events, industrial operations, and other high-demand temporary power applications, the PG1140 provides up to 27.8 hours of runtime at 75% load. Its sound-attenuated enclosure, advanced CoolBox+ cooling system, onboard fuel and DEF storage, and centralized controls make it well suited for long-duration deployments and demanding operating environments.

Key Features

• 1140 kVA / 912 kW prime power at 480/277V and 240/139V

• 1274 kVA / 1019 kW standby power

• Dual Cummins X15 Tier 4 Final diesel engines

• Dual Leroy Somer LSA 47.2 L9 brushless alternators

• Up to 27.8-hour runtime at 75% load

• 1,312-gallon usable onboard fuel capacity

• 92.8-gallon usable DEF capacity

• Multi-voltage configuration through an accessible link board

• Optional 240/120V single-phase operation

• Bobcat CoolBox+ cooling system

• DEIF AGC control system with 10" touchscreen display

• Remote auto start/stop capability

• 3000A main circuit breaker

• 8 Cam-Lok connections per phase

• 110% environmental fluid containment

• Sound-attenuated, corrosion-resistant enclosure

• 75 dB(A) at 23 ft at 75% load

• 48-foot galvanized dual-axle flatbed trailer

The manufacturer highlights these features across pages 1–5 of the specification sheet, including the tandem generator configuration and centralized switchgear layout.

Power Output Ratings

60 Hz – Three Phase

• 480/277V: 1140 kVA / 912 kW prime — 1372 A

• 240/139V: 1140 kVA / 912 kW prime — 2742 A

• 208/120V: 1081 kVA / 865 kW prime — 3000 A

60 Hz – Single Phase

• 240/120V: 510 kVA / 510 kW prime — 2126 A

• Single-phase operation requires the optional Single Phase Linkboard.

At 480/277V and 240/139V, standby capacity increases to 1274 kVA / 1019 kW.

Engine Specifications

• Manufacturer: Cummins

• Model: X15 T4F — two engines

• Emissions: EPA Tier 4 Final

• Prime Output: 680 bhp / 507 kWm each @ 1800 RPM

• Standby Output: 755 bhp / 563 kWm each @ 1800 RPM

• Electronically controlled for isochronous frequency control

• Selective Catalytic Reduction (SCR) aftertreatment

• Integrated aftertreatment thermal management

• No minimum load requirement down to -13°F (-20°C)

• Full standby performance in ambient temperatures up to 104°F (40°C)

Alternator & Voltage Control

• Manufacturer: Leroy Somer / Nidec

• Model: LSA 47.2 L9 — two alternators

• Four-pole revolving field design

• Brushless AREP excitation

• Class H insulation

• Digital automatic voltage regulator

• Up to 300% overload capability

• Oversized alternator design for strong motor-starting performance

• Multi-position link board for common voltage configurations

Fuel & Runtime

• Usable Fuel Capacity: 1,312 gallons

• Usable DEF Capacity: 92.8 gallons

• Runtime at 25% Load: 72.1 hours

• Runtime at 50% Load: 39.0 hours

• Runtime at 75% Load: 27.8 hours

• Runtime at 100% Load: 21.1 hours

• Low-fuel shutdown helps prevent the engines from losing prime

• Double-wall fuel protection integrated within the skid base

Controls & Switchgear

The PG1140 uses a centralized switchgear system positioned between the two generator sets, allowing operators to manage both units from a single location.

• DEIF AGC control system

• 10" DEIF Touch Display Unit

• Tandem generator operation from the centralized display

• Remote two-wire auto start/stop

• 3000A Schneider UL489 3-pole main breaker

• 8 × 400A female Cam-Loks per phase

• Battery charger and block heater shore-power connections

• Convenience receptacles with individual branch circuit breakers

• NEMA 3R switchgear enclosure

Enclosure & Cooling

• Fully bunded skid base with at least 110% fluid containment

• Corrosion-resistant galvannealed steel enclosure

• Multi-stage powder-coated finish

• Sound-absorbing acoustic materials

• Wide-opening, lockable service doors

• Ducted air intakes designed to minimize water ingress

• Variable-speed, engine-driven CoolBox+ cooling system

• Roof-mounted hot-air discharge

• Designed for reliable performance across a broad range of ambient temperatures and loads

Dimensions & Weight

• Trailer Length: 48 ft

• Width: 102 in

• Height: 157.5 in

• Shipping Weight without fuel: 48,540 lb

• Ready-to-Run Weight with fuel: 57,840 lb

• GVWR: 80,000 lb

• Trailer: Dual-axle galvanized flatbed

• Brakes: Air

• Suspension: Leaf spring

• OSHA-approved access ladders, guardrails, and work platforms

The package dimensions and trailer specifications are detailed on page 5 of the manufacturer sheet.

Applications

• Data centers and mission-critical facilities

• Industrial facilities and plant shutdowns

• Construction and infrastructure projects

• Special events and entertainment

• Oil, gas, and petrochemical operations

• Utility and temporary grid support

• Emergency and disaster response

• Large-scale temporary power installations

Why Choose the PG1140WCU-2B-T4F?

• More than 900 kW of prime power in a mobile, rental-ready package

• Dual-engine configuration engineered for demanding temporary power applications

• Extended onboard fuel capacity reduces refueling interruptions

• Tier 4 Final emissions compliance

• Centralized controls simplify operation of both generator sets

• Strong motor-starting performance for demanding industrial loads

• Rugged environmental containment and sound attenuation for challenging sites

• Integrated trailer, access platforms, switchgear, fuel, and DEF systems support efficient deployment
